There are a total of 3 Products

• Level meter head

  AMI liquid helium (LHe) level sensors use small niobium-titanium (NbTi) wires as the detector element. A heater is created in which and helps to maintain the normal area of the wire in the portion above the LHe level, while the helium level in the portion of the wire below the liquid remains superconducting. The output voltage of the sensor varies linearly with the liquid level.

  Learn More

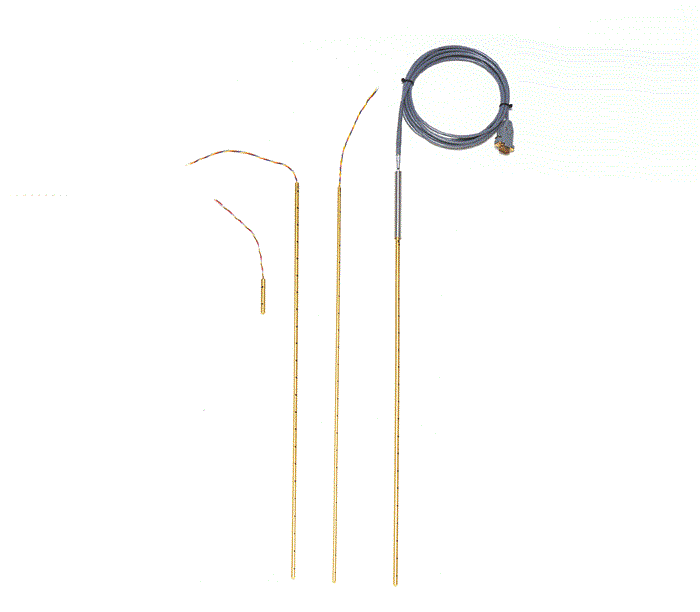

• Liquid Level Sensor

  AMI helium sensors are rugged and reliable and can operate in magnetic fields up to 10 Tesla. Standard AMI liquid helium sensors are made using 3/16", 1/4" and 3/8" phenolic (usually G-10) tubing. Flexible sensors are available in 3/32" and 5/16" O.D. 1/4" diameter sensors are available in effective lengths of 1" to 36" inches (1" increments) and 6" PTFE Insulated wire is available for immediate shipment. Other effective lengths can be manufactured to customer specifications up to 80" and can include longer leads or, for 1/4" 3/16" sensors, stainless steel sleeved Lemo connectors.

  Learn More


• Power Supply

  The AMI Model 430 Power Supply is a sophisticated digital power controller that allows operators to manage superconducting magnet systems with unprecedented precision and ease.The Model 430 is designed to control a wide range of single-quadrant, two-quadrant, and four-quadrant linear and switching power supplies.

  Learn More
